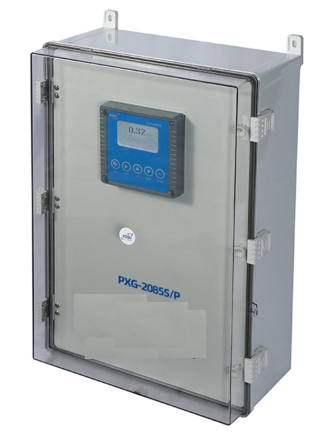

WaterRank Ion Pro – Intelligent Water Quality Analyzer Model PXG-2085S/P

Description

Product Description:

Introducing the WaterRank Ion Pro PXG-2085S/P, a cutting-edge water quality analyzer that seamlessly integrates a multi-functional intelligent instrument with an ion-selective electrode. Tailored to adapt to various ion-selective electrodes, this instrument features an LCD liquid crystal display, manual/automatic temperature compensation, and measurement status alarms. Ideal for measuring indicators such as fluoride ion, chloride ion, hardness, and more in drinking water, secondary water supply, and sanitary water applications.

Key Features:

• Model: PXG-2085S/P
• Parameter: F, Cl, Ca²⁺, NO₃, NH₄, K⁺, etc.
• Principle: Ion selective electrode
• Temp. Compensation: 0-60°C (Depending on the sensor)
• Accuracy: +5%FS
• Resolution: 0.01/0.1/1 mg/L
• Inlet Size: 6mm
• Outlet Size: 10mm
• Power Supply: 90V-260V AC 50/60Hz (24V alternative)
• Output: 4-20mA or RS485
• Relay: Two high and low positions/one-time relay
• Installation: Wall-mounted meter box, electrode equipped with flow cell
• Dimension: 600400230mm
• Storage: 4000 groups

Features:

1. Integrated design for simple installation, ready for immediate use after water connection.
2. Equipped with a flow cell to reduce interference and enhance measurement accuracy.
3. Data storage function for convenient access to historical data.
4. The electrode includes a built-in temperature sensor for accurate temperature compensation.

Applications: Perfectly suited for secondary water supply pump rooms, rural drinking water facilities, township water plants, tap water lifting pump rooms, colleges, and more.

Upgrade your water quality monitoring with WaterRank Ion Pro PXG-2085S/P, providing accuracy, reliability, and ease of use for various water quality applications.
