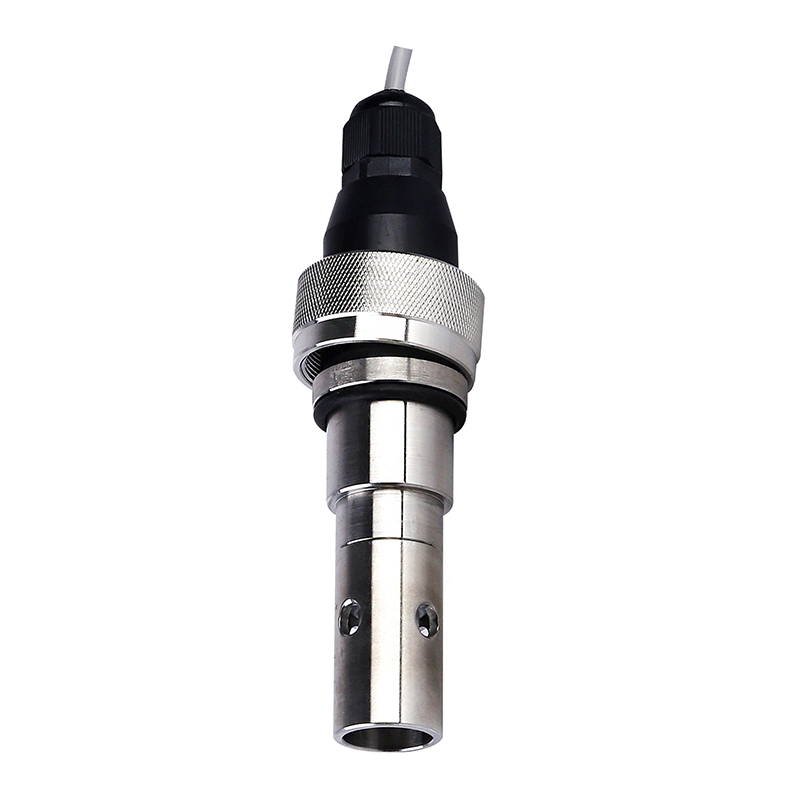

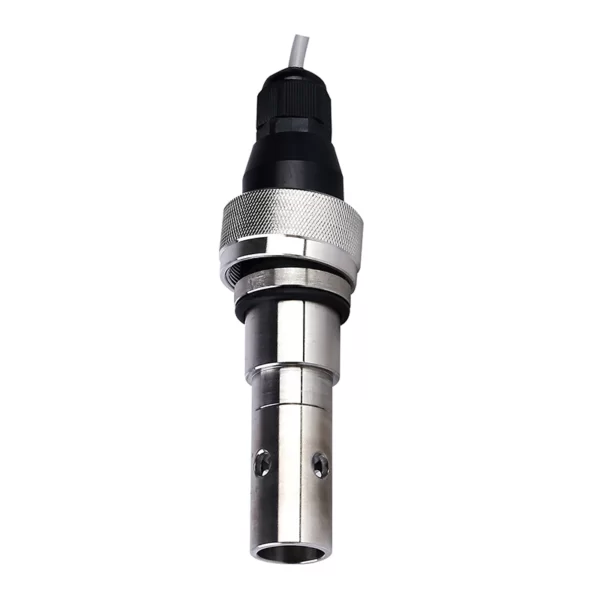

On-line Dissolved Oxygen Sensor

Introducing the advanced dissolved oxygen sensors by MyWaterRank, meticulously crafted to complement our state-of-the-art dissolved oxygen meter. Engineered for unparalleled performance, these sensors guarantee rapid and stable response times, making them indispensable across a spectrum of applications.

Specifications:

  • High sensitivity and accuracy for precise dissolved oxygen measurements
  • Robust construction ensuring durability and longevity
  • Compatible with MyWaterRank’s dissolved oxygen meter for seamless integration
  • Temperature compensation feature for reliable readings in varying environmental conditions
  • Wide operating temperature range for versatility in different settings
  • Designed for easy installation and maintenance

Category:

Description

Model DOG – 209FA DOG – 209FYD
Principle Polarographic Optical
Range 0-20mg / L
Accuracy ±0.3mg / L
Temperature Compensation Pt1000 , NTC10k , NTC2.252k Automatic compensation
Working Temperature 0~60 ° C 0~45 ° C
Pressure Atmospheric pressure
Material SS304, plastic SS304, titanium
Thread Upper NPT 3 / 4, Upper G1 Upper G1
Cable Length 5m 10m
Installation Sunbmerged installation
Model DOG – 208FA
Range 0 ~ 20mg / L
Accuracy + 0.3mg / L
Temperature Compensation Pt1000, NTC22K
Working Temperature Temperature tolerance : 0-145 ° C/ temperature range : 0-80 ° C
Pressure 0.2 ~ 6 Bar
Connector VP6 ( IP68 ) PG13.5
Dimension Diameter 12mm, length 120,225,325 optional
Material SS316L
Health Certification FDA
Model DOG – 208F
Range 0 ~ 200μg / L
Accuracy ± 0.1 µg / L
Temperature Compensation NTC2.252K , NTC22K , Ptl00 , Pt1000
Working Temperature Room temperature
Pressure atmospheric pressure
Material SS316L
Cable Length 5m or10m ( Double shielding )
Installation Flow – through

Product Feature

  • High precision, good stability
  • Anti-pollution, anti-interference
  • Pressure resistance, customizable
  • Automatic temperature compensation
  • High accuracy, fast and stable response.
